Incorrect cleaning in the food industry can lead to the loss of an entire day’s production and directly affect the quality of the end product.
Thinking about medium and large facilities that require a fully automated cleaning process, Inoxpa designed a range of static CIP systems to help clean plants, eliminate impurities and reduce bacteria levels.

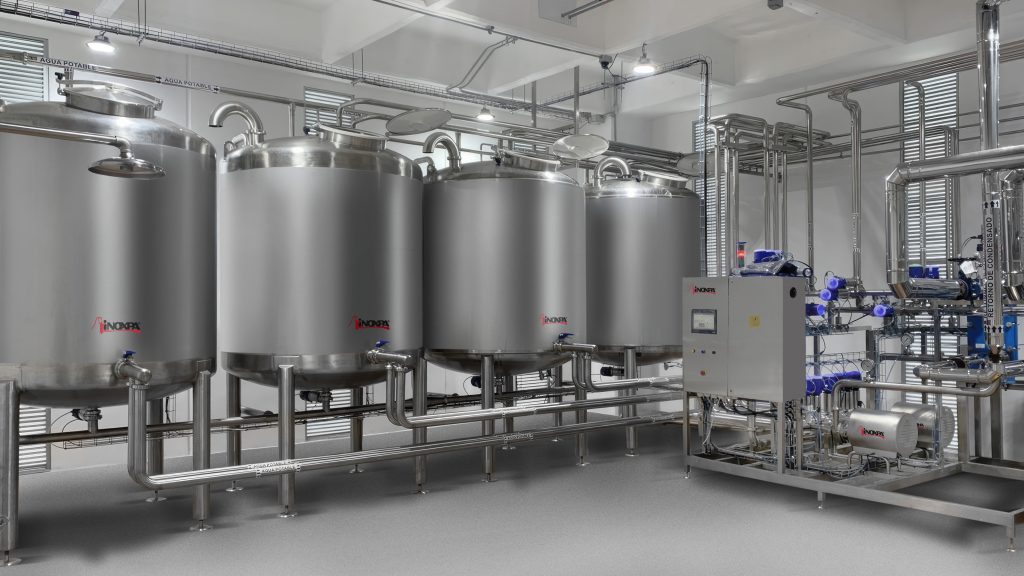

CIP systems can be equipped with a single tank or up to five/six tanks, suitable for water, caustic soda, acids, recovered water, purified water and disinfectants. There is a version that cleans one line and another that simultaneously cleans two lines, with flow rates of 10, 15, 20 and 25 m3/h.
This CIP series is structured in three parts: base frame with different components; tanks for water and chemical products; pipes and connections between the tanks and the base frame. The base frame comprises the following elements: HCP pump(s), tubular exchanger, valves, temperature probe(s) at the pump outlet, electromagnetic flow meter(s), conductivity meter(s) and flow detector(s) in the return line(s).
